Modified Polyamide(PA)

UL94 V0 PA66 GF15

Name: UL94 V0 PA66 GF15
Rating: 5 (99 reviews)

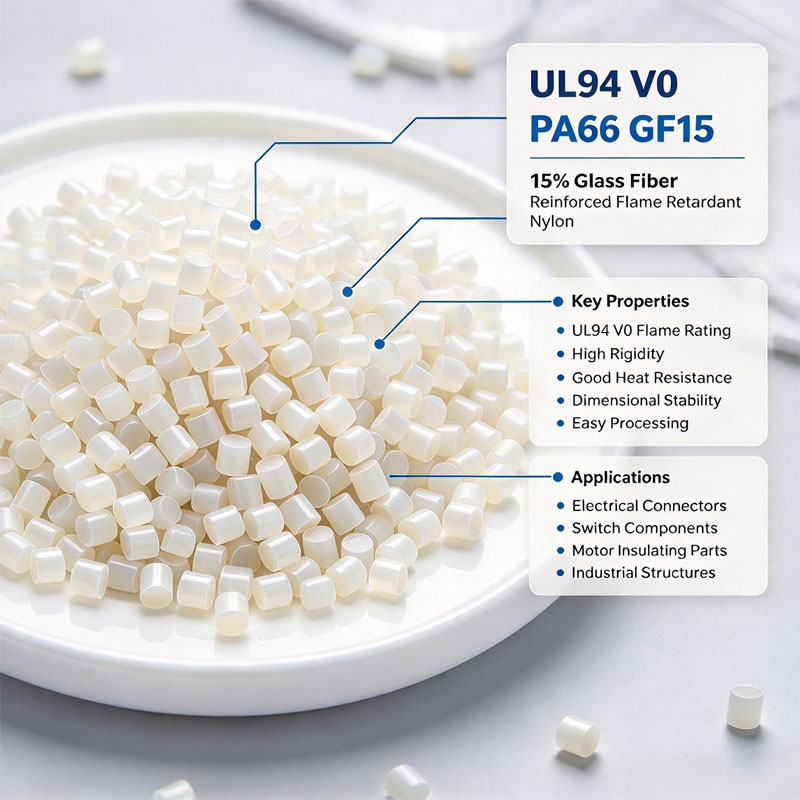

UL94 V0 PA66 GF15 (15% Glass Fiber Reinforced Flame-Retardant PA66)
Advantages
1. UL94 V0 flame retardancy; self-extinguishing upon removal of the ignition source; excellent electrical safety performance.
2. 15% glass fiber reinforcement; high rigidity and dimensional stability.
3. Excellent heat resistance; capable of withstanding higher operating temperatures.
4. Good injection molding processability.
Applications

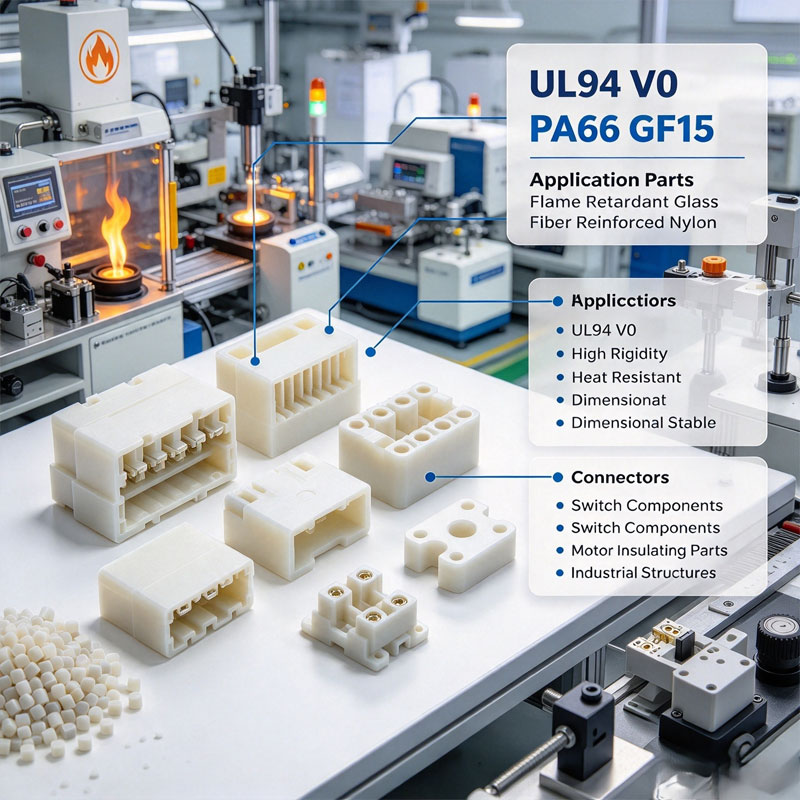

Electrical connectors, switch components, motor insulation parts, and industrial flame-retardant structural components.

PREV：Conductive / Anti-static PA66 GF13 CF12
NEXT：Low Warpage PA66 GB25

Parameter

Typical Properties	Test Method	Test Condition	GF10 Value	GF20 Value	GF30 Value	Unit
Density	DIN EN ISO 1183	23℃	1.26	1.31	1.4	g/cm³
Shrinkage	GB 15585	23℃	0.6-0.9	0.4~0.6	0.2~0.4	%
Tensile Strength	DIN EN ISO 527	50mm/min	80	125	138	MPa
Tensile Modulus	DIN EN ISO 527	50mm/min	5000	6800	9700	MPa
Elongation at Break	DIN EN ISO 527	50mm/min	2.5	2.3	2	%
Flexural Strength	DIN EN ISO 178	2mm/min	125	150	180	MPa
Flexural Modulus	DIN EN ISO 178	2mm/min	3800	5700	7100	MPa
Izod Notched Impact Strength	DIN EN ISO 180	4mm,23℃	7.5	9	12.3	KJ/M²
Izod Unnotched Impact Strength	DIN EN ISO 180	4mm,23℃	48	65	80	KJ/M²
Flame retardant properties	UL94	0.75mm	V1	V1	V1
Flame retardant properties	UL94	1mm	V0	V0	V0
Flame retardant properties	UL94	1.5mm	V0	V0	V0
Flame retardant properties	UL94	3mm	V0/5AV	V0/5AV	VO/5AV
