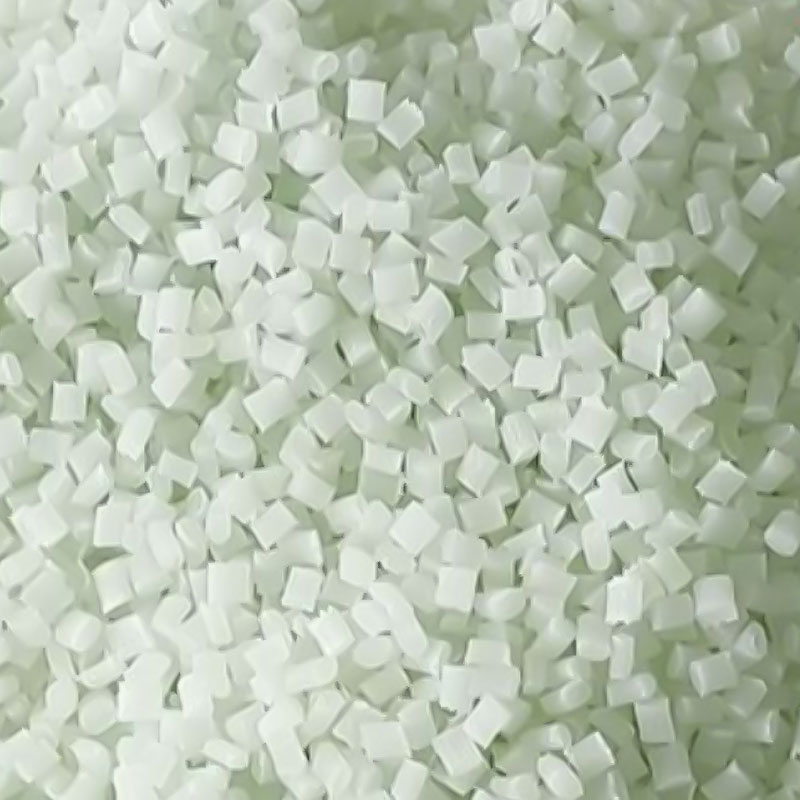

High-strength and High-rigidity PA66 GF30 Plastic

PA66 GF: By adding glass fiber, the material primarily improves strength, rigidity, and heat resistance, making it the most popular and cost-effective reinforcement solution.

Advantages:
High Strength and Rigidity: The addition of glass fibers significantly increases the tensile strength, flexural strength, and modulus of the material, making it several times stronger than pure PA66.
Excellent Heat Resistance: The heat deflection temperature is greatly increased (up to over 250°C), allowing long-term use at higher temperatures.
Good Dimensional Stability: Dimensional changes and creep tendency after moisture absorption are significantly reduced.
High Cost-Effectiveness: Among the three materials, the price is usually the lowest, making it highly cost-effective.

Disadvantages:
Increased Density: The material density is higher than pure PA66.
Significant Anisotropy: During injection molding, glass fibers orient along the flow direction, resulting in differences in shrinkage and mechanical properties in different directions, which can cause warping.
Wear on Equipment and Molds: The high hardness of glass fibers accelerates wear on injection molding screws, barrels, and molds.
Reduced Surface Gloss: The product surface may show fiber bloom, affecting appearance.

Typical Application Range:
Automotive Components: Engine-related parts (such as intake manifolds, engine covers), fan blades, throttle bodies, rearview mirror brackets, etc.
Mechanical Structural Components: Gears, bearing housings, drive shafts, housings, tool handles, and other parts requiring high strength and rigidity.
Power Tool Housings: Housings for electric drills, angle grinders, etc., requiring high strength, heat resistance, and insulation.
Household Appliance Parts: Washing machine pulleys, juicer gears, vacuum cleaner components, etc.
