Modified PPA Plastic Pellets

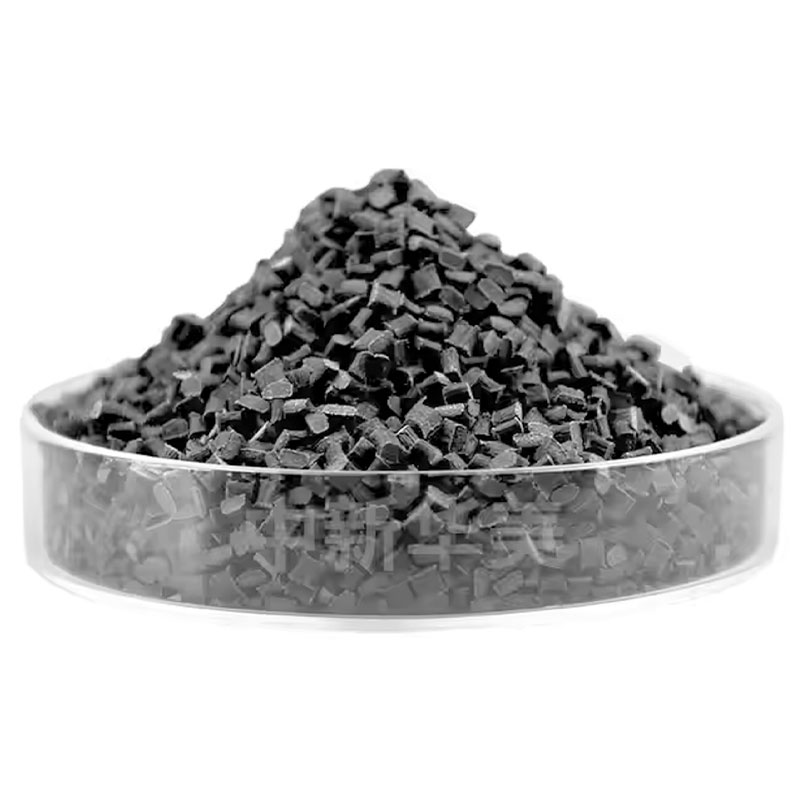

Dimensionally stable and conductive PPA CF20 Plastic

Carbon Fiber Reinforced PPA: CF20 PPA
Full name / composition: PPA + 20% Carbon Fiber.
Nature: Short-cut carbon fibers (20%) are incorporated into the PPA matrix. This represents a higher-end reinforcement solution.

Differences from GF20 PPA:
Higher rigidity and strength: Carbon fiber has a much higher modulus and strength than glass fiber.

Excellent fatigue resistance.
Extremely low coefficient of linear thermal expansion: Dimensions change minimally with temperature, suitable for precision components.
Provides conductivity/anti-static properties: Carbon fibers can form conductive networks, suitable for anti-static or electromagnetic shielding applications.
Lighter weight: Carbon fiber density is lower than glass fiber.
Higher cost: Raw materials and mold wear costs are significantly higher than GF materials.

Main Applications:
Situations requiring extreme lightweight and rigidity: drone structural components, robotic arms, high-end sports equipment parts.
Electronic enclosures or brackets requiring electromagnetic shielding.
Precision optical instrument brackets and barrels (taking advantage of low thermal expansion).
High-performance automotive components (e.g., F1 racing parts).

PREV：Reduced friction and enhanced wear resistance PPA PTFE Plastic
NEXT：Heat-resistant PPA GF30 Plastic

Parameter

Product Description
Resin Identification	20% carbon fibre reinforcement, excellent stability, conductive grade, high rigidity, high modulus
Color	black
Main applications	Automotive components, electrical fittings, precision electronic components
Processing Method	Injection Molding
Typical Properties	Test Method	Test Condition	Value	Unit
Physical Properties
Density	DIN EN ISO 1183	23℃	1.2	g/cm³
Shrinkage	DIN EN ISO 294	How	0.6-0.8	%
Shrinkage	DIN EN ISO 294	Flow	0.7-0.9	%
Mineral content	Internal testing method	650℃	20	%
Mechanical Properties
Tensile Strength	DIN EN ISO 527	50mm/min	170	MPa
Tensile Modulus			12800	MPa
Elongation at Break			≥2.5	%
Flexural Strength	DIN EN ISO 178	2mm/min	230	MPa
Flexural Modulus	DIN EN ISO 178	2mm/min	11000	MPa
Izod Notched Impact Strength	DIN EN ISO 180	4mm,23℃	8	KJ/M²
Izod Un-notched Impact Strength	DIN EN ISO 180	4mm,23℃	55	KJ/M²
Thermal Performance
Heat Deformation Temperature	DIN EN ISO 75	0.45MPa	280	℃
Heat Deformation Temperature	DIN RN ISO 75	1.8MPa	270	℃
Others
Surface resistance	IEC60093 IEC60094		10^3-5	Ω
Volume resistivity	IEC60093 IEC60094		10^3-5	Ω.cm
Flammability
Flammability	UL 94	1mm	HB	Class
Flammability	UL 94	2mm	HB	Class

Note:

(1) Data represents typical values for customer reference only and does not constitute a guarantee of minimum or maximum quality standards or any other purpose.

(2) Performance may vary across different colours.

Caution:

The data and information herein are based on our current knowledge and experience. Should new knowledge or experience arise, we reserve the right to modify this information and data without prior notice. As usage conditions and applicable laws may vary by location and time, it is the customer's responsibility to determine whether the products and product information herein are suitable for their intended use, and to ensure their workplace and product handling methods comply with applicable laws and other governmental regulations. Lixu New Materials assumes no liability or obligation regarding the information in this document and makes no warranties whatsoever. All implied warranties of merchantability or fitness for a particular purpose are hereby expressly excluded.

Typical Injection Molding Process
Plastic Drying
Drying Time	2~4 hours
Drying Temperature	100~120℃
Drying Equipment	Hot-air dryer
Drying Type	Continuous drying (production process)
Injection Molding Process
NozzleSection	290~310℃
PlasticsSection	310~330℃
ConveyingSection	280~300℃
MaximumInjectionTemperature	350℃
Injection Pressure	40~100MPa
Injection Speed	30~75mm/s
Plasticization PressureVelocity	Pressure: 65–100 MPa Speed: 60–85 mm/s
Plasticization Back Pressure	5～10MPa
Recommended Mold Temperature	140~160°C

Disclaimer: The aforementioned injection moulding processes may vary depending on the product geometry, mould design, and injection moulding machine specifications. Specific adjustments should be made according to actual circumstances.
