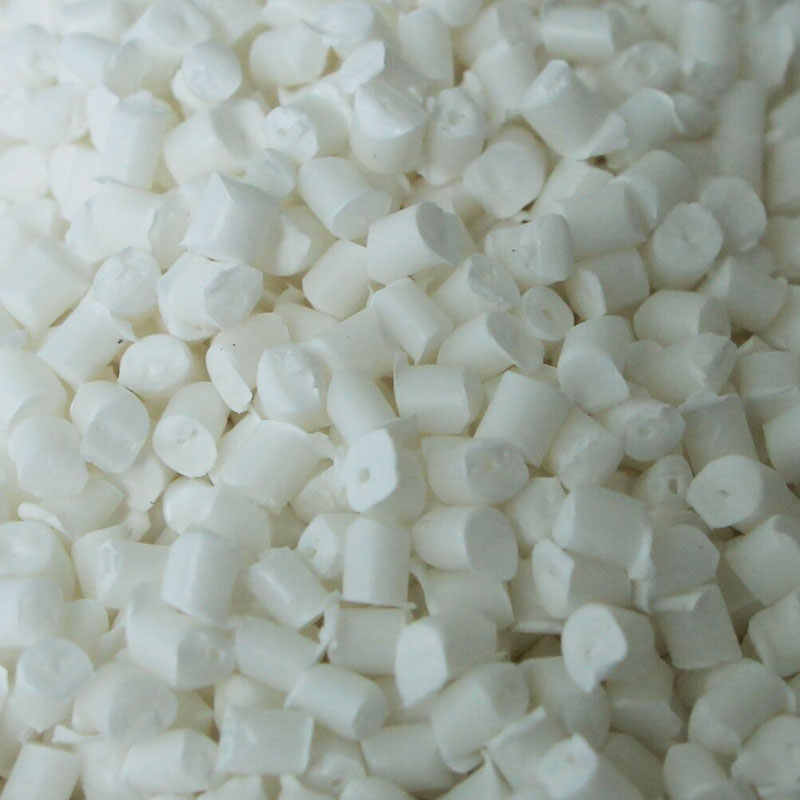

Flame-Retardant V0 Polypropylene (PP) Material

Flame-retardant polypropylene (PP) is an important class of engineering plastics developed by adding flame retardants or modifying the polymer structure on the basis of general-purpose polypropylene resin, enabling it to resist flame propagation. Its primary purpose is to inhibit or slow down combustion and enhance application safety.

The following is a detailed description of its main characteristics and applications:
1. Core Properties
Flame Retardancy
This is the most critical feature. By incorporating flame-retardant systems (such as halogen-based, halogen-free phosphorus-nitrogen, or metal hydroxides), the material can:
Delay ignition: Increase the time required to ignite.
Suppress flame spread: Reduce burning speed and prevent rapid fire escalation.
Promote self-extinguishing: Extinguish automatically once the fire source is removed.

The commonly used evaluation standard is the UL94 flame retardancy rating, with typical grades including V-2, V-1, and V-0. V-0 is the highest grade, meaning the material self-extinguishes within 10 seconds in vertical burn tests without flaming droplets igniting cotton.

Retention of PP’s basic advantages
Lightweight: Low density (approximately 0.9–1.1 g/cm³), beneficial for product light-weighting.
Chemical resistance: Good resistance to most acids, bases, salts, and organic solvents.
Processability: Suitable for conventional plastic processing methods such as injection molding and extrusion.
Electrical insulation: Excellent electrical insulating properties, suitable for electrical applications.

Other performance changes due to modification
Mechanical properties: The addition of flame retardants may slightly reduce toughness (impact strength) and tensile strength, but formulation optimization (e.g., synergists or graft modification) can maintain balance.
Thermal properties: Heat distortion temperature may slightly increase, but long-term use is limited by the thermal stability of the flame retardants (generally slightly lower than ordinary PP).
Appearance and blooming: May affect gloss and color (e.g., milky or gray). Poor formulations may lead to flame retardant blooming, affecting surface properties and long-term flame-retardant performance.
Environmental friendliness: Halogen-free flame-retardant PP (especially compliant with RoHS, REACH, etc.) has become mainstream, producing less smoke and toxic gases when burning, making it more environmentally friendly.

2. Main Applications (Based on Flame Retardancy and Comprehensive Performance)
Flame-retardant PP is widely used in areas with clear fire safety requirements:

Electronics and Electrical Appliances
A core application field requiring UL94 V-0 or higher.
Typical components include: TV/monitor housings (rear covers), battery housings (especially for power battery modules), sockets/switch panels, coil frames, small circuit breaker housings, charger housings, and induction cooker bases.

Home Appliances
Components such as washing machine control panels, rice cooker/microwave internal parts, heater/air conditioner fan blades, and internal appliance supports, designed to prevent ignition due to overheating or short circuits.

Automotive Industry
Flame retardancy is mandatory for certain interior materials (e.g., GB 8410).
Typical components include: EV battery pack modules (module end plates, brackets), fuse boxes, terminal blocks, distribution boxes, fan covers, and interior trim.

Wires and Cables
Used for cable insulation and sheathing, especially in building wiring, communication cables, and internal equipment harnesses requiring flame retardancy.

Construction and Transportation
Used in public buildings, subways, high-speed rail, ships, and other applications with low-smoke, halogen-free flame retardant materials.
Typical components: protective conduits, cable trays, decorative panels, insulation and soundproofing materials, seat components, etc.

Office Equipment and Home Furnishings
Printer and copier housings, and other components requiring fire protection, including certain lighting and furniture parts.

3. Material Selection Considerations
Define required flame-retardant grade: Determine the necessary flame-retardant level (V-2, V-1, V-0, 5VB, 5VA) based on the safety standards of the end product (UL, IEC, GB).
Pay attention to environmental regulations: For export products, ensure halogenated flame retardants are restricted; prefer halogen-free flame-retardant PP.
Balance comprehensive performance: Ensure adequate impact strength, heat resistance, color, and anti-static properties while meeting flame-retardant requirements.
Processing adaptability: Different flame-retardant PP formulations may require different processing temperatures and flow properties; adjust process parameters accordingly.

Flame-retardant PP, through modification, retains PP’s advantages of light weight, chemical resistance, processability, and insulation, while providing essential fire safety performance. This upgrade transforms general-purpose PP into a functional engineering plastic meeting specific safety standards. Its applications have penetrated electronics, automotive, home appliances, and public safety fields, making it an indispensable safety material in modern industry. With increasing environmental requirements, high-efficiency, low-toxicity, halogen-free flame-retardant PP is the mainstream direction for future development.
